Multi-Agent Systems

Build resilient multi-agent systems that automatically recover from failures and scale across distributed infrastructure. Restate provides two approaches for routing requests to specialized agents: local agents for simple routing within a single service, and remote agents for separate scaling or isolation.

What Restate offers for multi-agent systems

At the core of every multi-agent system is a routing mechanism that decides which agent should handle each request. Restate makes this routing resilient by ensuring all decisions and agent interactions are durably logged and automatically retried.

Two routing approaches

Local Agent Routing

Route to different specialized prompts within the same service
Best for: Simple agent specialization with shared context and without infrastructure complexity
Use when: You want different AI personalities/expertise but don’t need separate deployments

Remote Agent Routing

Route to independent services running across different infrastructure
Best for: Systems requiring independent scaling, isolation, or different technology stacks
Use when: You need agents in different languages/SDKs, separate scaling, or team ownership boundaries

How Restate ensures resilience

Durable routing decisions: When your LLM decides to route to an agent, that decision is automatically persisted. If anything fails, Restate resumes from exactly where it left off—no duplicate work, no lost context. Failure-resistant communication: Whether calling local or remote agents, all interactions are wrapped in Restate’s durable execution. Network failures, service restarts, and timeouts are handled automatically with retries and recovery. End-to-end observability: The Restate UI shows the complete execution trace across all agent calls, making it easy to debug complex multi-agent workflows and understand routing decisions. Works with any LLM SDK (Vercel AI, LangChain, LiteLLM, etc.) and any programming language supported by Restate (TypeScript, Python, Go, etc.).

Routing to local agents

Local agent routing lets you create specialized AI assistants within a single service by using different prompts and personalities. The LLM first decides which specialist is needed, then you call the LLM again with a specialized prompt for that agent. This approach is perfect when you want to create focused expertise areas (like billing, technical support, or sales) without the complexity of separate services.

const SPECIALISTS = {
  billingAgent: {
    description: "Expert in payments, charges, and refunds",
    prompt:
      "You are a billing support agent specializing in payments, charges, and refunds.",
  },
  accountAgent: {
    description: "Expert in login issues and security",
    prompt:
      "You are an account support agent specializing in login issues and security.",
  },
  productAgent: {
    description: "Expert in features and how-to guides",
    prompt:
      "You are a product support agent specializing in features and how-to guides.",
  },
} as const;

type Specialist = keyof typeof SPECIALISTS;

async function answer(ctx: Context, { message }: { message: string }) {
  // 1. First, decide if a specialist is needed
  const routingDecision = await ctx.run(
    "Pick specialist",
    // Use your preferred LLM SDK here - specify agents as tools
    async () => llmCall(message, createTools(SPECIALISTS)),
    { maxRetryAttempts: 3 },
  );

  // 2. No specialist needed? Give a general answer
  if (!routingDecision.toolCalls || routingDecision.toolCalls.length === 0) {
    return routingDecision.text;
  }

  // 3. Get the specialist's name
  const specialist = routingDecision.toolCalls[0].toolName as Specialist;

  // 4. Ask the specialist to answer
  const { text } = await ctx.run(
    `Ask ${specialist}`,
    async () =>
      llmCall([
        { role: "user", content: message },
        { role: "system", content: SPECIALISTS[specialist].prompt },
      ]),
    { maxRetryAttempts: 3 },
  );

  return text;
}

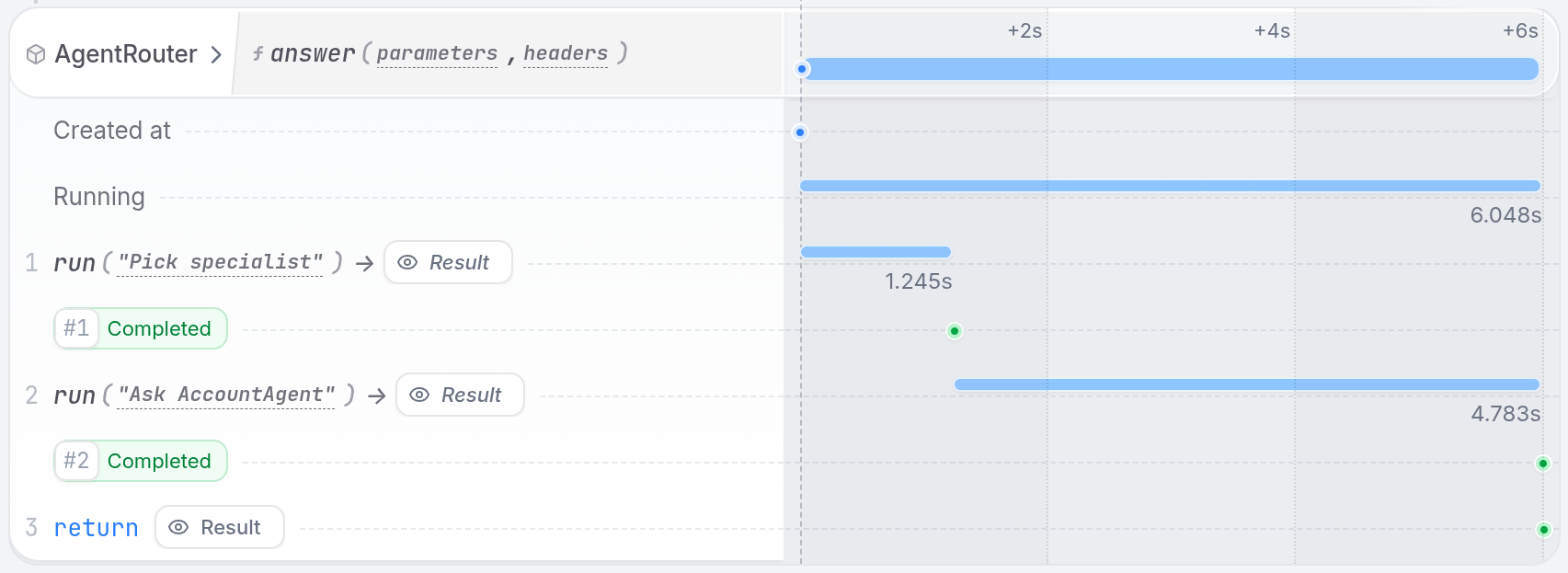

View on GitHub: TS / Python In the Restate UI, you can see how the LLM decides to forward the request to the specialized support agents, and how the response is processed:

Dynamic routing based on LLM output - UI

Run the example

Requirements

AI SDK of your choice (e.g., OpenAI, LangChain, Pydantic AI, LiteLLM, etc.) to make LLM calls.
API key for your model provider.

Download the example

git clone https://github.com/restatedev/ai-examples.git &&
cd typescript-patterns &&
npm install

Start the Restate Server

restate-server

Start the Service

Export the API key of your model provider as an environment variable and then start the agent. For example, for OpenAI:

export OPENAI_API_KEY=your_openai_api_key
npm run dev

Send a request

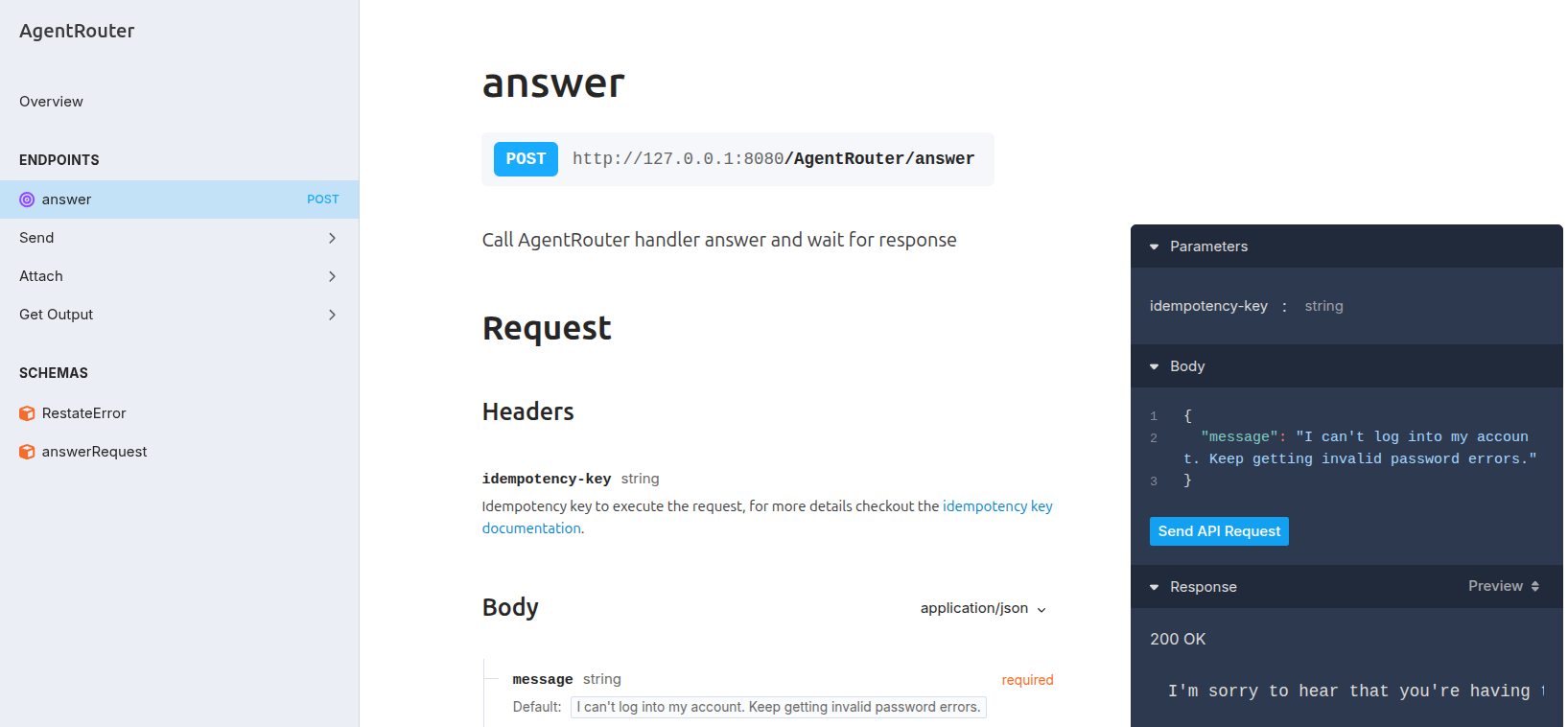

In the UI (http://localhost:9070), click on the answer handler of the AgentRouter service to open the playground and send a default request:

Check the Restate UI

In the UI, you can see how the LLM decides to forward the request to the specialized support agents, and how the response is processed:

Routing to remote agents

Deploy specialized agents as separate services when you need independent scaling, isolation, or different technology stacks. Remote agents run as independent services that communicate over HTTP. Restate makes these calls look like local function calls while providing end-to-end durability and failure recovery. The example below shows dynamic routing where the LLM’s decision determines which remote service to call. Each specialist agent runs as its own service with a standard run handler.

// Define your agents as tools as your AI SDK requires (here Vercel AI SDK)
const SPECIALISTS = {
  BillingAgent: { description: "Expert in payments, charges, and refunds" },
  AccountAgent: { description: "Expert in login issues and security" },
  ProductAgent: { description: "Expert in features and how-to guides" },
} as const;
type Specialist = keyof typeof SPECIALISTS;

async function answer(ctx: Context, { message }: { message: string }) {
  // 1. First, decide if a specialist is needed
  const messages: ModelMessage[] = [
    {
      role: "system",
      content:
        "You are a routing agent. Route the question to a specialist or respond directly if no specialist is needed.",
    },
    { role: "user", content: message },
  ];
  const routingDecision = await ctx.run(
    "Pick specialist",
    // Use your preferred LLM SDK here - specify agents as tools
    async () => llmCall(messages, createTools(SPECIALISTS)),
    { maxRetryAttempts: 3 },
  );

  // 2. No specialist needed? Give a general answer
  if (!routingDecision.toolCalls || routingDecision.toolCalls.length === 0) {
    return routingDecision.text;
  }

  // 3. Get the specialist's name
  const specialist = routingDecision.toolCalls[0].toolName as Specialist;

  // 4. Call the specialist over HTTP
  return ctx.genericCall<string, string>({
    service: specialist,
    method: "run",
    parameter: message,
    inputSerde: restate.serde.json,
    outputSerde: restate.serde.json,
  });
}

View on GitHub: TS / Python Each agent is then implemented in its own service. For example, here is the billing agent implementation.

Billing Agent implementation

export const billingAgent = restate.service({
  name: "BillingAgent",
  handlers: {
    run: async (ctx: Context, question: string): Promise<string> => {
      const { text } = await ctx.run(
        "LLM call",
        async () =>
          llmCall(`You are a billing support specialist.
            Acknowledge the billing issue, explain charges clearly, provide next steps with timeline.
            ${question}`),
        { maxRetryAttempts: 3 },
      );
      return text;
    },
  },
});

For more details on service communication, see: TypeScript / Python. The Restate UI shows how the LLM decides to forward the request to the specialized remote support agents, and shows the execution trace of the nested calls in a single view. This is useful for debugging and monitoring complex multi-agent workflows.

Run the example

Requirements

AI SDK of your choice (e.g., OpenAI, LangChain, Pydantic AI, LiteLLM, etc.) to make LLM calls.
API key for your model provider.

Download the example

git clone https://github.com/restatedev/ai-examples.git &&
cd typescript-patterns &&
npm install

Start the Restate Server

restate-server

Start the Service

Export the API key of your model provider as an environment variable and then start the agent. For example, for OpenAI:

export OPENAI_API_KEY=your_openai_api_key
npm run dev

Send a request

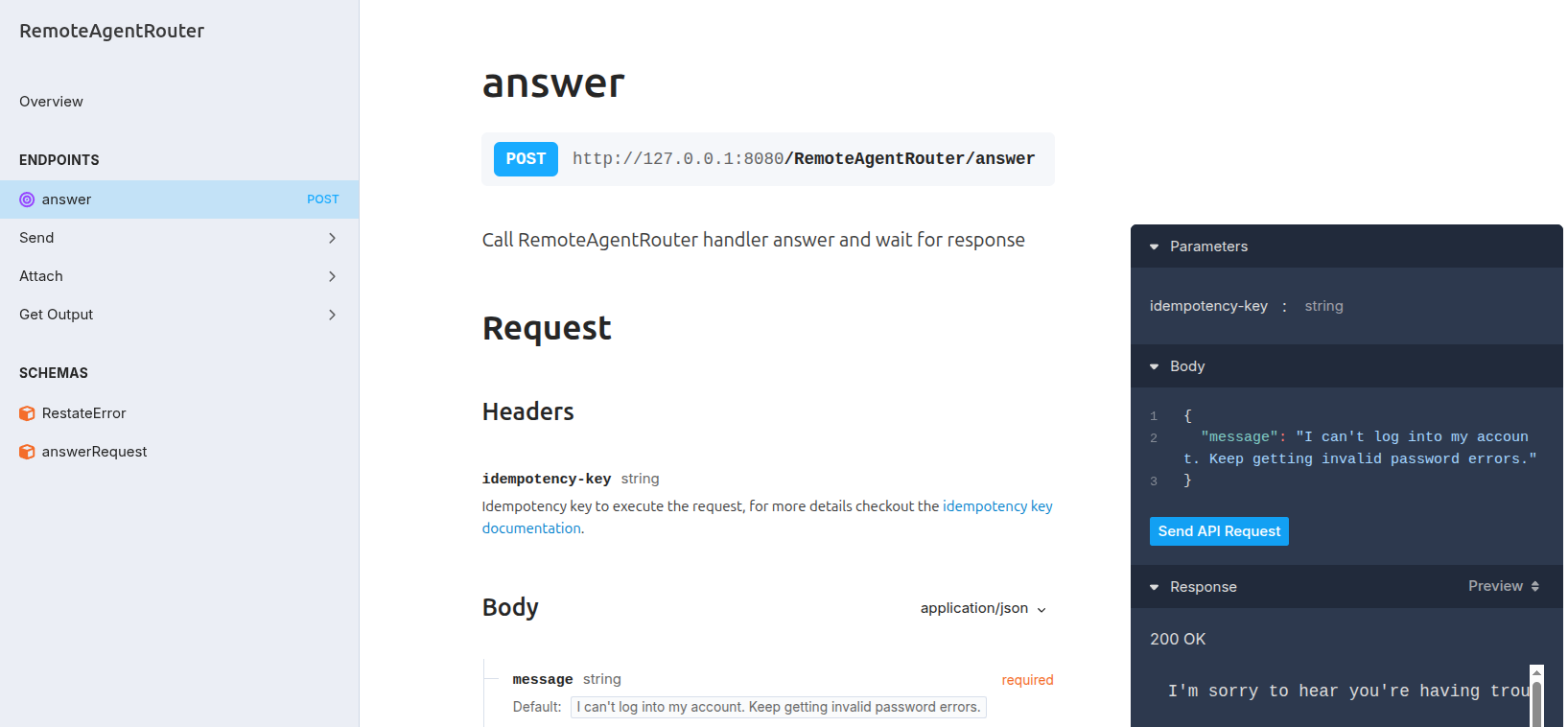

In the UI (http://localhost:9070), click on the answer handler of the RemoteAgentRouter service to open the playground and send a default request:

Check the Restate UI

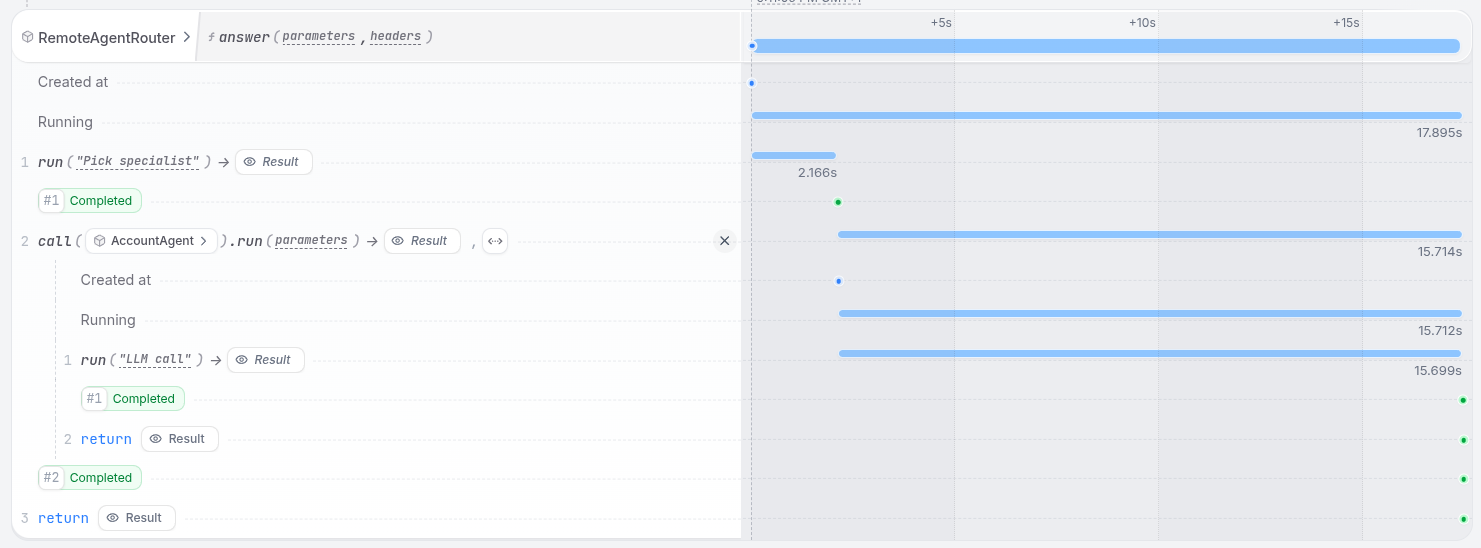

In the UI, you can see how the LLM decides to forward the request to the specialized support agents, and the nested execution trace of the remote calls:
