Build resilient AI agents that route requests to appropriate tools and workflows. Restate ensures all routing decisions, tool calls, and interactions are durably logged with automatic retries and recovery.

​
How does Restate help?

Restate provides durable execution for tool routing and execution:
  • Durable routing decisions: LLM routing choices are persisted and recovered after failures
  • Resilient tool execution: Tool calls are wrapped with retries and failure recovery
  • Distributed tool communication: Call remote tools as regular functions with end-to-end durability
  • Workflow orchestration: Implement complex multi-step processes with state management and scheduling
  • Works with any LLM SDK (Vercel AI, LangChain, LiteLLM, etc.) and any programming language supported by Restate (TypeScript, Python, Go, etc.).
Tools can either be executed locally within the same service/process or as remote services. Restate supports both options, allowing you to choose the best fit for your architecture and use case.

​
Option 1: Local tools with durable execution

What it provides:
  • Execute tools within the same service/process
  • Automatic retries and failure recovery for each tool call
Best for: Tools with few steps, built-in SDK tools (e.g. search, database queries) What it looks like: Tools defined as local functions. You can either:
  1. Wrap the entire tool execution in ctx.run() for durability.
  2. Do multiple Restate Context actions within the tool for finer-grained durability and retries.

​
Option 2: Remote tools as separate services

What it provides:
  • Tools can scale independently
  • Tools can run on different infrastructure (e.g. serverless or Kubernetes) or languages
  • Tools can run asynchronously: agent can kick off work and return early
  • Durable communication between services
Best for: Complex tools, multi-step workflows, asynchronous or long-running tasks What it looks like: Tools deployed as separate Restate services, called durably over HTTP from the main agent service.

​
Example

This example implements an example of a local tool (querying the user database) and a remote workflow (creating a support ticket) for a technical support agent.
  1. Define tools according to your AI SDK requirements
  2. Wrap LLM calls in ctx.run() for persistence
  3. Process tool calls in a loop until the LLM returns a final answer
    • Local tools get wrapped in ctx.run() for durability and retries (see tool call to query user database)
    • Remote tools get called with the SDK client (see tool call to create support ticket)
The following examples show how to implement local tool routing with popular AI SDKs:
// Define your tools as your AI SDK requires (here Vercel AI SDK)
const tools = {
  queryUserDatabase: tool({
    description: "Get user account and billing info",
    inputSchema: z.object({}),
  }),
  createSupportTicket: tool({
    description: "Create support tickets",
    inputSchema: z.object({
      description: z.string().describe("Detailed description of the issue"),
    }),
  }),
};

async function route(ctx: Context, req: { message: string; userId: string }) {
  const messages: ModelMessage[] = [
    {
      role: "system",
      content:
        "You are a support agent. Use the available tools to answer the user's question. " +
        "If you don't know the answer, create a support ticket",
    },
    { role: "user", content: req.message },
  ];

  while (true) {
    // Call the LLM using your favorite AI SDK
    const result = await ctx.run(
      "LLM call",
      // Use your preferred LLM SDK here
      async () => llmCall(messages, tools),
      { maxRetryAttempts: 3 },
    );
    messages.push(...result.messages);

    if (result.finishReason !== "tool-calls") return result.text;

    for (const { toolName, toolCallId, input } of result.toolCalls) {
      let output: string;
      // Use ctx.run to ensure durable execution of tool calls
      switch (toolName) {
        case "queryUserDatabase":
          // Example of a local tool
          output = await ctx.run("Query DB", () => queryUserDb(req.userId));
          break;
        case "createSupportTicket":
          // Example of a remote tool/workflow
          output = await ctx
            .serviceClient(crmService)
            .createSupportTicket(input as SupportTicket);
          break;
        default:
          output = `Tool not found: ${toolName}`;
      }
      messages.push(toolResult(toolCallId, toolName, output));
    }
  }
}
View on GitHub: TS / Python When you run the example below, you can see how the LLM decides to forward the request to the technical support tools, and how the response is processed: Dynamic routing based on LLM output - UI
1

Requirements

  • AI SDK of your choice (e.g., OpenAI, LangChain, Pydantic AI, LiteLLM, etc.) to make LLM calls.
  • API key for your model provider.
2

Download the example

git clone https://github.com/restatedev/ai-examples.git &&
cd typescript-patterns &&
npm install
3

Start the Restate Server

restate-server
4

Start the Service

Export the API key of your model provider as an environment variable and then start the agent. For example, for OpenAI:
export OPENAI_API_KEY=your_openai_api_key
npm run dev
5

Register the services

  • UI
  • CLI
Service Registration
6

Send a request

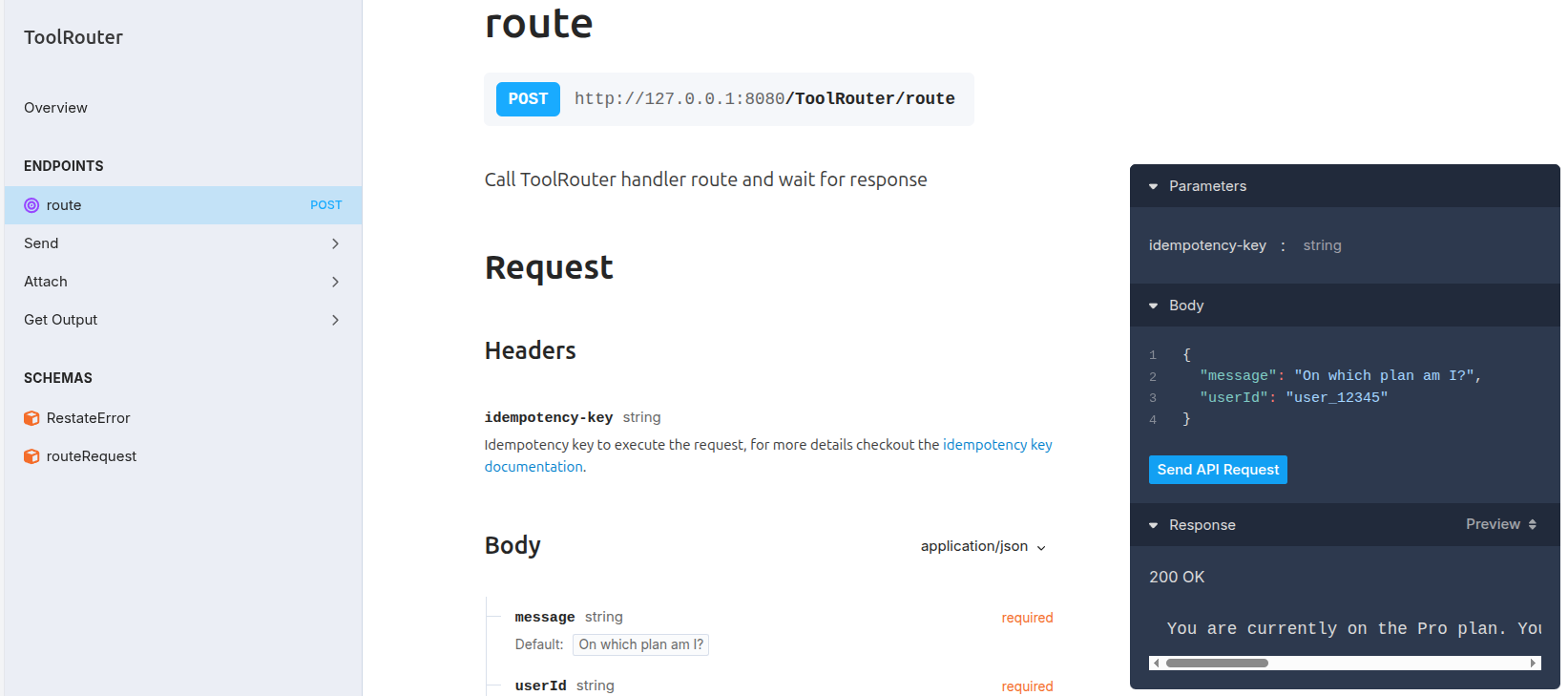

In the UI (http://localhost:9070), click on the route handler of the ToolRouter service to open the playground and send a default request:Dynamic routing LLM calls - UIOr send other requests to test different tool routing scenarios.
7

Check the Restate UI

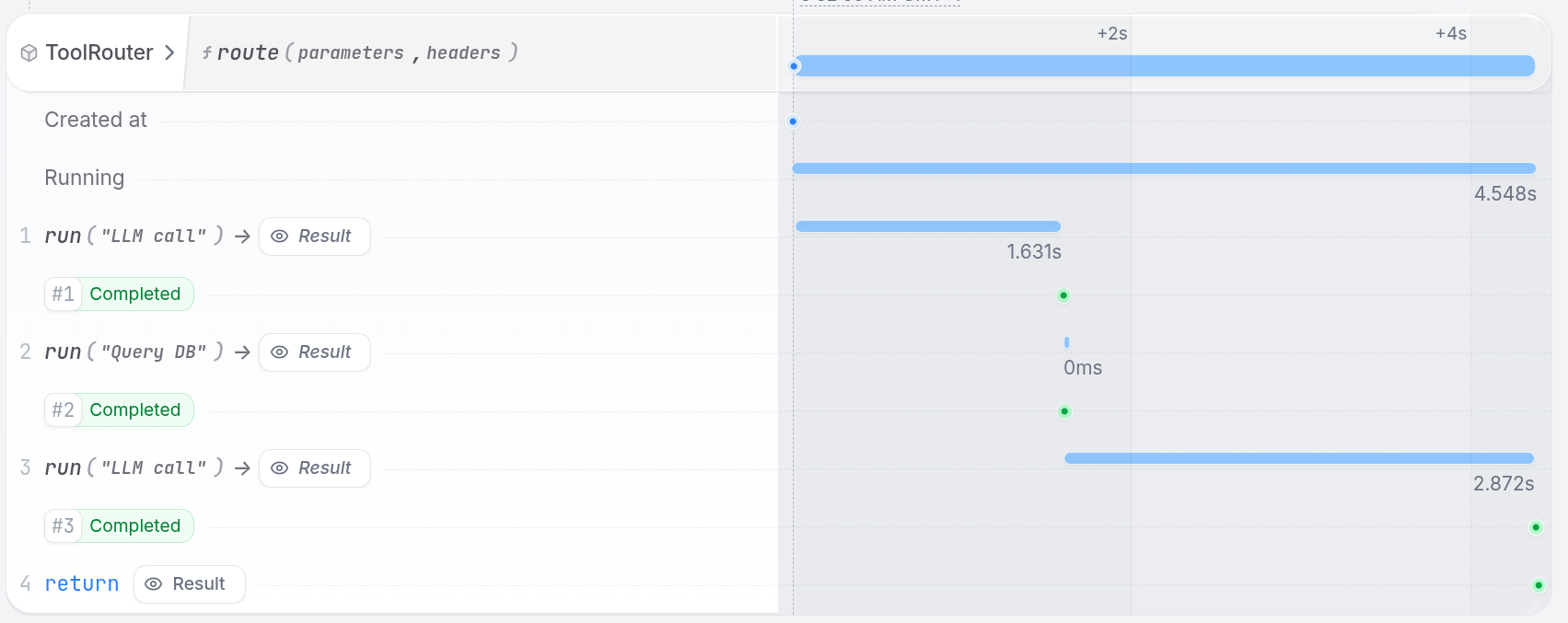

In the UI, you can see how the LLM decides to forward the request to the technical support tools, and how the response is processed:Dynamic routing based on LLM output - UI
