Sagas - Restate

A Saga is a design pattern for handling transactions that span multiple services. It breaks the process into a sequence of local operations, each with a corresponding compensating action. If a failure occurs partway through, these compensations are triggered to undo completed steps, ensuring your system stays consistent even when things go wrong.

How does Restate help?

Restate makes implementing resilient sagas simple:

Durable Execution: Restate guarantees completion and automatically retries from failure points. No manual state tracking or retry logic needed
Code-first approach: Define sagas using regular code, no DSLs required

Example

A travel booking workflow: book a flight, rent a car, then book a hotel. If any step fails (e.g. hotel full), we roll back previous steps to maintain consistency. Sagas example diagram

Implementation:

Wrap business logic in a try-block, throw terminal errors for compensation cases
Add compensations to a list for each step
In catch block, run compensations in reverse order and rethrow

Note: Golang uses defer for compensations.

const bookingWorkflow = restate.service({
  name: "BookingWorkflow",
  handlers: {
    run: async (ctx: restate.Context, req: BookingRequest) => {
      const { customerId, flight, car, hotel } = req;
      const compensations = [];

      try {
        compensations.push(() => ctx.run("Cancel flight", () => flightClient.cancel(customerId)));
        await ctx.run("Book flight", () => flightClient.book(customerId, flight));

        compensations.push(() => ctx.run("Cancel car", () => carRentalClient.cancel(customerId)));
        await ctx.run("Book car", () => carRentalClient.book(customerId, car));

        compensations.push(() => ctx.run("Cancel hotel", () => hotelClient.cancel(customerId)));
        await ctx.run("Book hotel", () => hotelClient.book(customerId, hotel));
      } catch (e) {
        if (e instanceof restate.TerminalError) {
          for (const compensation of compensations.reverse()) {
            await compensation();
          }
        }
        throw e;
      }
    },
  },
});

restate.serve({
  services: [bookingWorkflow],
  port: 9080,
});

@Service
public class BookingWorkflow {

  public record BookingRequest(
      String customerId, FlightRequest flight, CarRequest car, HotelRequest hotel) {}

  @Handler
  public void run(BookingRequest req) throws TerminalException {
    List<Runnable> compensations = new ArrayList<>();

    try {
      compensations.add(
          () -> Restate.run("Cancel flight", () -> FlightClient.cancel(req.customerId)));
      Restate.run("Book flight", () -> FlightClient.book(req.customerId, req.flight()));

      compensations.add(
          () -> Restate.run("Cancel car", () -> CarRentalClient.cancel(req.customerId)));
      Restate.run("Book car", () -> CarRentalClient.book(req.customerId, req.car()));

      compensations.add(
          () -> Restate.run("Cancel hotel", () -> HotelClient.cancel(req.customerId)));
      Restate.run("Book hotel", () -> HotelClient.book(req.customerId, req.hotel()));
    }
    catch (TerminalException e) {
      for (Runnable compensation : compensations) {
        compensation.run();
      }
      throw e;
    }
  }

  public static void main(String[] args) {
    RestateHttpServer.listen(Endpoint.bind(new BookingWorkflow()));
  }
}

@Service
class BookingWorkflow {

  @Handler
  suspend fun run(req: BookingRequest) {

    val compensations = mutableListOf<suspend () -> Unit>()

    try {
      compensations.add { runBlock("Cancel flight") { cancelFlight(req.customerId) } }
      runBlock("Book flight") { bookFlight(req.customerId, req.flight) }

      compensations.add { runBlock("Cancel car") { cancelCar(req.customerId) } }
      runBlock("Book car") { bookCar(req.customerId, req.car) }

      compensations.add { runBlock("Cancel hotel") { cancelHotel(req.customerId) } }
      runBlock("Book hotel") { bookHotel(req.customerId, req.hotel) }
    }
    catch (e: TerminalException) {
      compensations.reversed().forEach { it() }
      throw e
    }
  }
}

fun main() {
  RestateHttpServer.listen(endpoint { bind(BookingWorkflow()) })
}

booking_workflow = restate.Service("BookingWorkflow")


@booking_workflow.handler()
async def run(ctx: restate.Context, req: BookingRequest):
    compensations = []

    try:
        compensations.append(
            lambda: ctx.run_typed("Cancel flight", flight_client.cancel, customer_id=req.customer_id)
        )
        await ctx.run_typed("Book flight", flight_client.book, customer_id=req.customer_id, flight=req.flight)

        compensations.append(
            lambda: ctx.run_typed("Cancel car", car_rental_client.cancel, customer_id=req.customer_id)
        )
        await ctx.run_typed("Book car", car_rental_client.book, customer_id=req.customer_id, car=req.car)

        compensations.append(
            lambda: ctx.run_typed("Cancel hotel", hotel_client.cancel, customer_id=req.customer_id)
        )
        await ctx.run_typed("Book hotel", hotel_client.book, customer_id=req.customer_id, hotel=req.hotel)

    except TerminalError as e:
        for compensation in reversed(compensations):
            await compensation()
        raise e


app = restate.app([booking_workflow])

if __name__ == "__main__":
    import hypercorn
    import asyncio

    conf = hypercorn.Config()
    conf.bind = ["0.0.0.0:9080"]
    asyncio.run(hypercorn.asyncio.serve(app, conf))

type BookingWorkflow struct{}

func (BookingWorkflow) Run(ctx restate.Context, req BookingRequest) (err error) {

  var compensations []func() (restate.Void, error)

  defer func() {
    if err != nil {
      for _, compensation := range slices.Backward(compensations) {
        if _, compErr := compensation(); compErr != nil {
          err = compErr
        }
      }
    }
  }()

  compensations = append(compensations, func() (restate.Void, error) {
    return restate.Run(ctx,
      func(ctx restate.RunContext) (restate.Void, error) {
        return CancelFlight(req.CustomerId)
      },
      restate.WithName("Cancel flight"),
    )
  })
  if _, err = restate.Run(ctx,
    func(ctx restate.RunContext) (restate.Void, error) {
      return BookFlight(req.CustomerId, req.Flight)
    },
    restate.WithName("Book flight"),
  ); err != nil {
    return err
  }

  compensations = append(compensations, func() (restate.Void, error) {
    return restate.Run(ctx,
      func(ctx restate.RunContext) (restate.Void, error) {
        return CancelCar(req.CustomerId)
      },
      restate.WithName("Cancel car"),
    )
  })
  if _, err = restate.Run(ctx,
    func(ctx restate.RunContext) (restate.Void, error) {
      return BookCar(req.CustomerId, req.Car)
    },
    restate.WithName("Book car"),
  ); err != nil {
    return err
  }

  compensations = append(compensations, func() (restate.Void, error) {
    return restate.Run(ctx,
      func(ctx restate.RunContext) (restate.Void, error) {
        return CancelHotel(req.CustomerId)
      },
      restate.WithName("Cancel hotel"),
    )
  })
  if _, err = restate.Run(ctx,
    func(ctx restate.RunContext) (restate.Void, error) {
      return BookHotel(req.CustomerId, req.Hotel)
    },
    restate.WithName("Book hotel"),
  ); err != nil {
    return err
  }

  return nil
}

func main() {
  if err := server.NewRestate().
    Bind(restate.Reflect(BookingWorkflow{})).
    Start(context.Background(), ":9080"); err != nil {
    log.Fatal(err)
  }
}

View on GitHub: TS / Java / Kotlin / Python / Go

This pattern is implementable with any of our SDKs. We are still working on translating all patterns to all SDK languages. If you need help with a specific language, please reach out to us via Discord or Slack.

When to use Sagas

Restate automatically retries transient failures (network hiccups, temporary outages). For non-transient failures, sagas are essential:

Business logic failures: When failures are business decisions (e.g. “Hotel is full”), retrying won’t help. Throw a terminal error to trigger compensations.
User/system cancellations: When you cancel long-running invocations, sagas undo previous operations to maintain consistency.

Running the example

Download the example

restate example typescript-patterns-use-cases && cd typescript-patterns-use-cases

restate example java-patterns-use-cases && cd java-patterns-use-cases

restate example kotlin-patterns-use-cases && cd kotlin-patterns-use-cases

restate example python-patterns-use-cases && cd python-patterns-use-cases

restate example go-patterns-use-cases && cd go-patterns-use-cases

Start the Restate Server

restate-server

Start the Service

npm install
npx tsx watch ./src/sagas/booking_workflow.ts

./gradlew -PmainClass=my.example.sagas.BookingWorkflow run

./gradlew -PmainClass=my.example.sagas.BookingWorkflowKt run

uv run sagas/app.py

go run ./src/sagas

restate deployments register localhost:9080

Send a request

curl localhost:8080/restate/call/BookingWorkflow/run --json '{
        "flight": {
            "flightId": "12345",
            "passengerName": "John Doe"
        },
            "car": {
            "pickupLocation": "Airport",
            "rentalDate": "2024-12-16"
        },
            "hotel": {
            "arrivalDate": "2024-12-16",
            "departureDate": "2024-12-20"
        }
    }'

curl localhost:8080/restate/call/BookingWorkflow/run --json '{
        "flight": {
            "flightId": "12345",
            "passengerName": "John Doe"
        },
            "car": {
            "pickupLocation": "Airport",
            "rentalDate": "2024-12-16"
        },
            "hotel": {
            "arrivalDate": "2024-12-16",
            "departureDate": "2024-12-20"
        }
    }'

curl localhost:8080/restate/call/BookingWorkflow/run --json '{
        "flight": {
            "flightId": "12345",
            "passengerName": "John Doe"
        },
            "car": {
            "pickupLocation": "Airport",
            "rentalDate": "2024-12-16"
        },
            "hotel": {
            "arrivalDate": "2024-12-16",
            "departureDate": "2024-12-20"
        }
    }'

curl localhost:8080/restate/call/BookingWorkflow/run --json '{
        "flight": {
            "flightId": "12345",
            "passengerName": "John Doe"
        },
            "car": {
            "pickupLocation": "Airport",
            "rentalDate": "2024-12-16"
        },
            "hotel": {
            "arrivalDate": "2024-12-16",
            "departureDate": "2024-12-20"
        }
    }'

curl localhost:8080/restate/call/BookingWorkflow/Run --json '{
        "flight": {
            "flightId": "12345",
            "passengerName": "John Doe"
        },
            "car": {
            "pickupLocation": "Airport",
            "rentalDate": "2024-12-16"
        },
            "hotel": {
            "arrivalDate": "2024-12-16",
            "departureDate": "2024-12-20"
        }
    }'

Check the UI or service logs

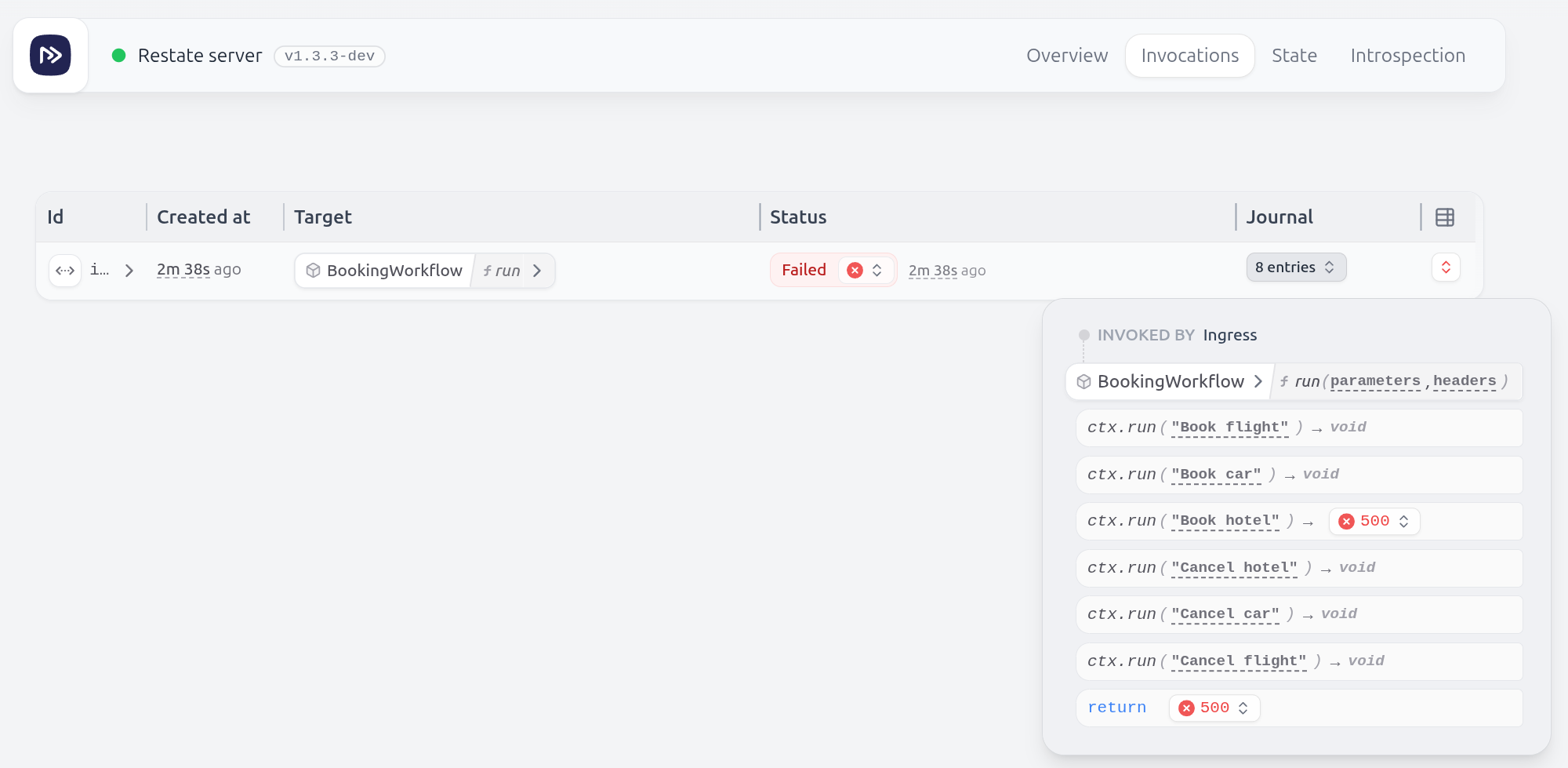

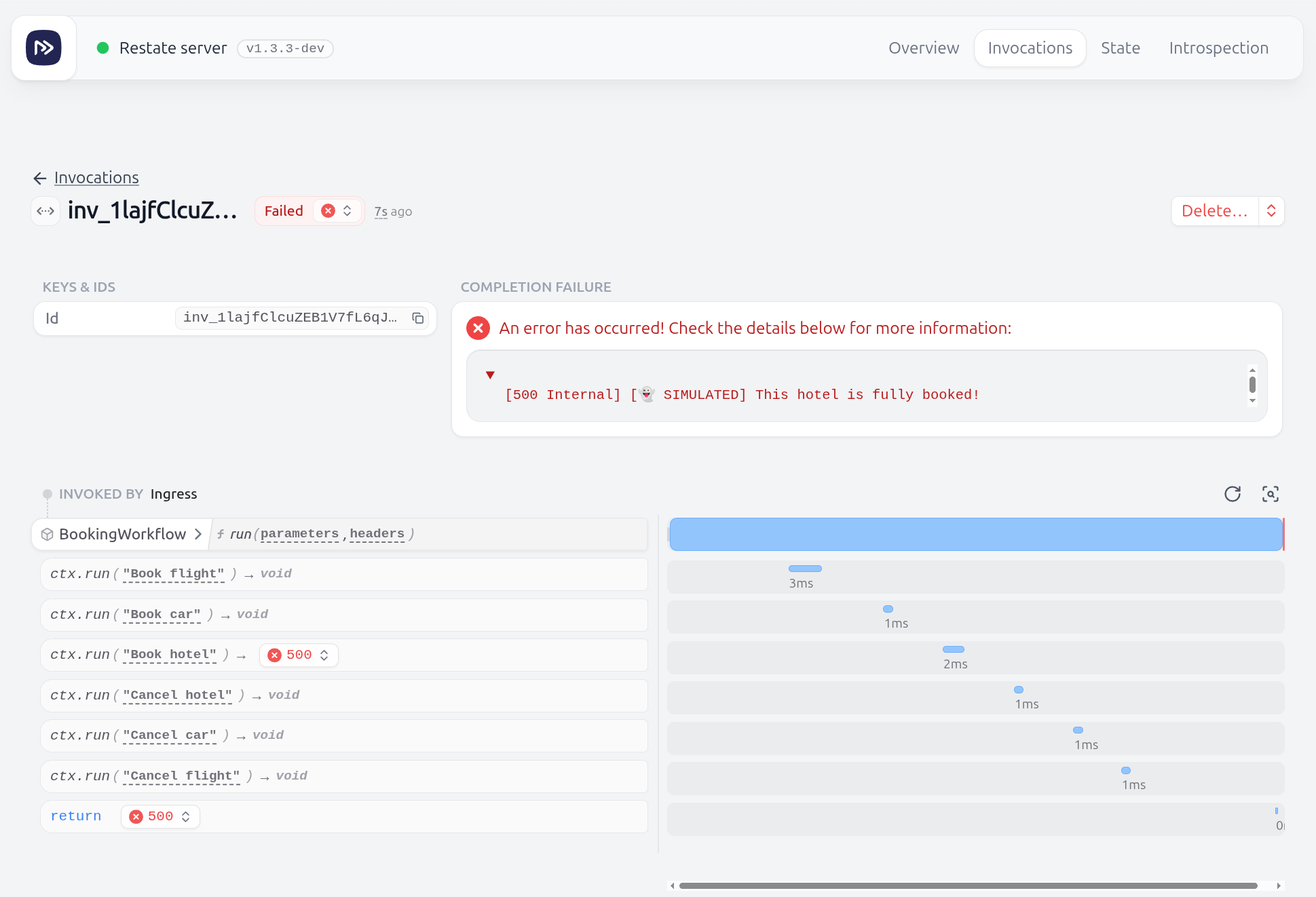

See in the Restate UI (localhost:9070) how all steps were executed, and how the compensations were triggered because the hotel was full.

Advanced: Idempotency and compensations

Sagas in Restate are flexible and powerful since they’re implemented in user code. However, you need to make sure compensations are idempotent. The example uses customer ID for idempotency, preventing duplicate bookings on retries. The API provider deduplicates requests based on this ID. Different APIs require different approaches:

Two-phase APIs: First reserve, then confirm or cancel. Register the compensation after reservation, when you have the resource ID. This type of API usually auto-cancels reservations after a timeout.

const bookingId = await ctx.run(() =>
  flightClient.reserve(customerId, flight)
);
compensations.push(() => ctx.run(() => flightClient.cancel(bookingId)));

// ... do other work, like reserving a car, etc. ...

await ctx.run(() => flightClient.confirm(bookingId));

booking_id = await ctx.run_typed(
    "reserve", flight_client.reserve, customer_id=customer_id, flight=flight
)
compensations.append(
    lambda: ctx.run_typed("cancel", flight_client.cancel, booking_id=booking_id)
)

#  ... do other work, like reserving a car, etc. ...

await ctx.run_typed("confirm", flight_client.confirm, booking_id=booking_id)

String bookingId =
    Restate.run("reserve-flight", String.class, () -> FlightClient.reserve(flight));
compensations.add(() -> Restate.run("cancel-flight", () -> FlightClient.cancel(bookingId)));

// ... do other work, like reserving a car, etc. ...

Restate.run("confirm-flight", () -> FlightClient.confirm(bookingId));

// For each action, we register a compensation that will be executed on failures
val bookingId = runBlock { reserveFlight(customerId, flight) }
compensations.add { runBlock { cancelFlight(bookingId) } }

// ... do other work, like reserving a car, etc. ...

compensations.add { runBlock { confirmFlight(bookingId) } }

bookingId, err := restate.Run(ctx, func(ctx restate.RunContext) (string, error) {
  return ReserveFlight(req.CustomerId, req.Flight)
})
if err != nil {
  return err
}

compensations = append(compensations, func() (restate.Void, error) {
  return restate.Run(ctx, func(ctx restate.RunContext) (restate.Void, error) {
    return CancelFlight(bookingId)
  })
})

// ... do other work, like reserving a car, etc. ...

if _, err = restate.Run(ctx, func(ctx restate.RunContext) (restate.Void, error) {
  return ConfirmFlight(bookingId)
}); err != nil {
  return err
}

One-shot APIs with idempotency key: Generate idempotency key, persist in Restate, register compensation (e.g. refund), then do action (e.g. charge). Register compensation first in case action succeeded but confirmation was lost.

const paymentId = ctx.rand.uuidv4();
compensations.push(() => ctx.run(() => paymentClient.refund(paymentId)));
await ctx.run(() => paymentClient.charge(paymentInfo, paymentId));

payment_id = str(ctx.uuid())
compensations.append(lambda: ctx.run_typed("refund", refund, payment_id=payment_id))
await ctx.run_typed(
    "charge", charge, payment_info=payment_info, payment_id=payment_id
)

String paymentId = Restate.random().nextUUID().toString();
compensations.add(() -> Restate.run("refund-payment", () -> PaymentClient.refund(paymentId)));
Restate.run("charge-payment", () -> PaymentClient.charge(paymentInfo, paymentId));

val paymentId = random().nextUUID().toString()
compensations.add { runBlock { refund(paymentId) } }
runBlock { charge(paymentInfo, paymentId) }

paymentID := restate.UUID(ctx).String()

// Register the refund as a compensation, using the idempotency key
compensations = append(compensations, func() (restate.Void, error) {
  return restate.Run(ctx, func(ctx restate.RunContext) (restate.Void, error) {
    return Refund(paymentID)
  })
})

// Do the payment using the idempotency key
if _, err = restate.Run(ctx, func(ctx restate.RunContext) (restate.Void, error) {
  return Charge(paymentID, req.PaymentInfo)
}); err != nil {
  return err
}

​How does Restate help?

​Example

​When to use Sagas

​Running the example

​Advanced: Idempotency and compensations

​Related resources

How does Restate help?

Example

When to use Sagas

Running the example

Advanced: Idempotency and compensations

Related resources
