Cron Jobs

This guide shows how to use the Restate to schedule cron jobs.

What is a cron job?

A cron job is a scheduled task that runs periodically at a specified time or interval. It is often used for background tasks like cleanup or sending notifications.

Restate has no built-in functionality for cron jobs. But Restate's durable building blocks make it easy to implement a service that does this for us, and uses the guarantees Restate gives to make sure tasks get executed reliably.

Restate has many features that make it a good fit for implementing cron jobs:

Durable timers: Schedule tasks to run at a specific time in the future. Restate ensures execution.
Task resiliency: Restate ensures that tasks are retried until they succeed.
Task control: Cancel and inspect running jobs.

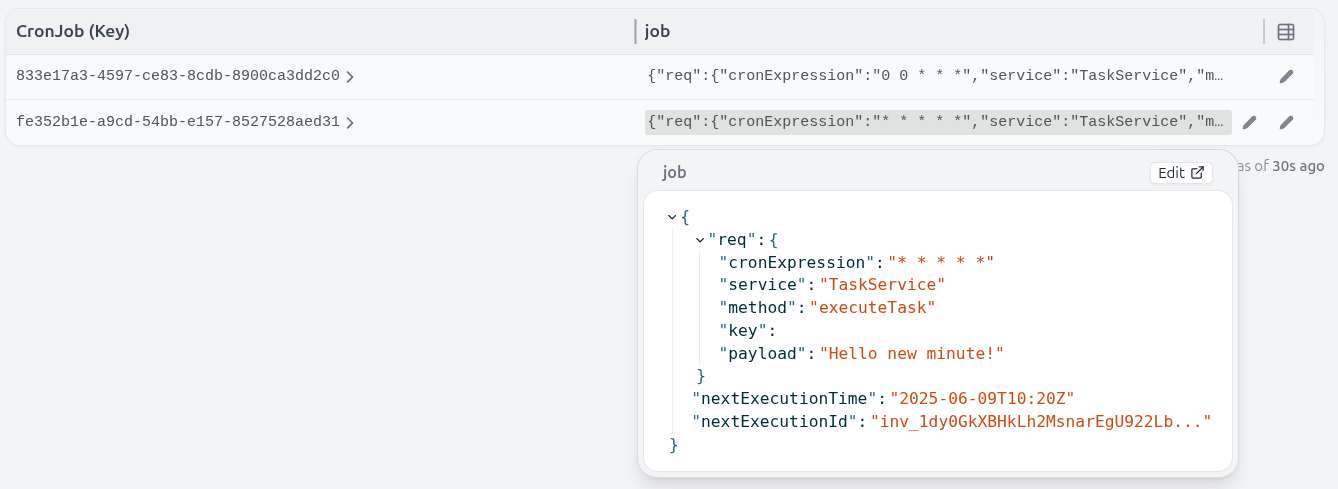

K/V state: We store the details of the cron jobs in Restate, so we can retrieve them later and query them from the outside.
FaaS support: Run your services on FaaS infrastructure, like AWS Lambda. Restate will scale your scheduler and tasks to zero while they sleep.
Scalability: Restate can handle many cron jobs running in parallel, and can scale horizontally to handle more load.

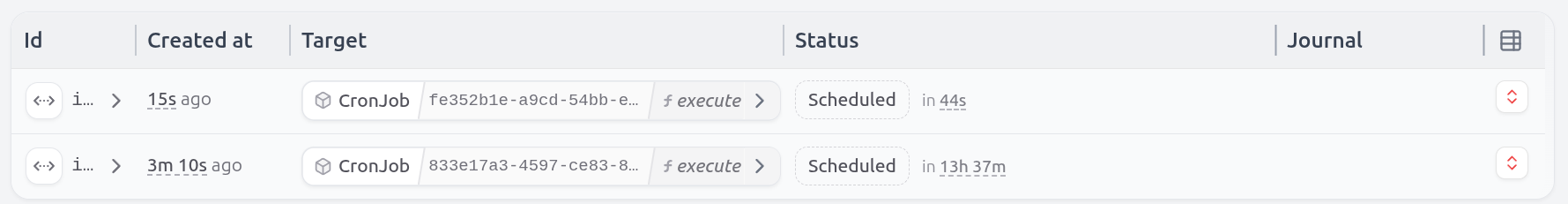

Observability: See the execution history of the cron jobs, and their status in the Restate UI.

Example

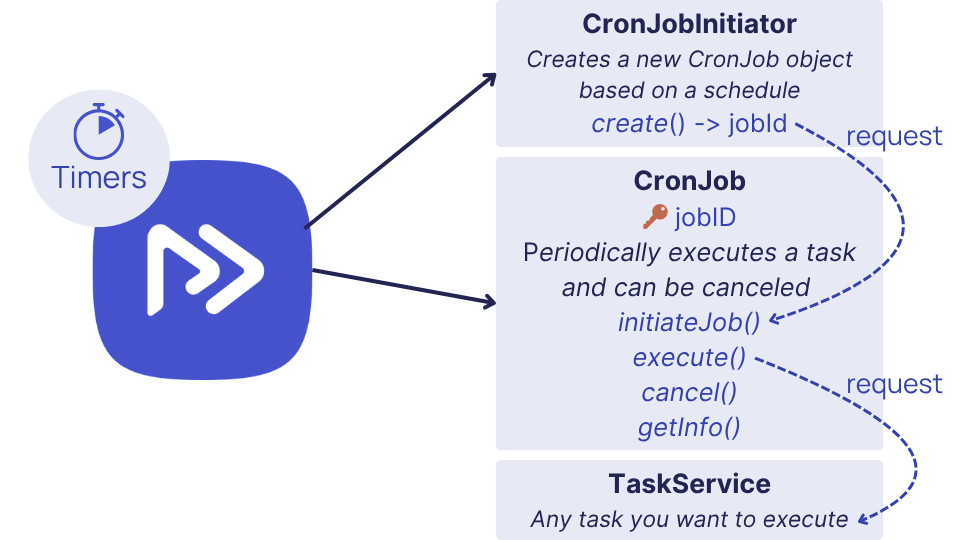

The example implements a cron service that you can copy over to your own project.

Usage:

Send requests to CronJobInitiator.create() to start new jobs with standard cron expressions:

{
    "cronExpression": "0 0 * * *", # E.g. run every day at midnight
    "service": "TaskService", # Schedule any Restate handler
    "method": "executeTask",
    "key": "taskId", # Optional, Virtual Object key
    "payload": "Hello midnight!"
}

Each job gets a unique ID and runs as a CronJob virtual object
Jobs automatically reschedule themselves after each execution

TypeScript
Java
Go


export const cronJobInitiator = restate.service({
  name: "CronJobInitiator",
  handlers: {
    create: async (ctx: restate.Context, request: JobRequest) => {
      // Create a new job ID and initiate the cron job object for that ID
      // We can then address this job object by its ID
      const jobId = ctx.rand.uuidv4();
      const job = await ctx.objectClient(cronJob, jobId).initiate(request);
      return `Job created with ID ${jobId} and next execution time ${job.next_execution_time}`;
    },
  },
});

export const cronJob = restate.object({
  name: "CronJob",
  handlers: {
    initiate: async (ctx: restate.ObjectContext, request: JobRequest): Promise<JobInfo> => {
      if (await ctx.get<JobInfo>(JOB_STATE)) {
        throw new TerminalError("Job already exists for this ID.");
      }

      return await scheduleNextExecution(ctx, request);
    },
    execute: async (ctx: restate.ObjectContext) => {
      const jobState = await ctx.get<JobInfo>(JOB_STATE);
      if (!jobState) {
        throw new TerminalError("Job not found.");
      }

      // execute the task
      const { service, method, key, payload } = jobState.request;
      if (payload) {
        ctx.genericSend({
          service,
          method,
          parameter: payload,
          key,
          inputSerde: serde.json,
        });
      } else {
        ctx.genericSend({
          service,
          method,
          parameter: undefined,
          key,
          inputSerde: serde.empty,
        });
      }

      await scheduleNextExecution(ctx, jobState.request);
    },
    cancel: async (ctx: restate.ObjectContext) => {
      // Cancel the next execution
      const jobState = await ctx.get<JobInfo>(JOB_STATE);
      if (jobState) {
        ctx.cancel(jobState.next_execution_id);
      }

      // Clear the job state
      ctx.clearAll();
    },
    getInfo: async (ctx: restate.ObjectSharedContext) => ctx.get<JobInfo>(JOB_STATE),
  },
});

const scheduleNextExecution = async (
  ctx: restate.ObjectContext,
  request: JobRequest
): Promise<JobInfo> => {
  // Parse cron expression
  // Persist current date in Restate for deterministic replay
  const currentDate = await ctx.date.now();
  let interval;
  try {
    interval = CronExpressionParser.parse(request.cronExpression, { currentDate });
  } catch (e) {
    throw new TerminalError(`Invalid cron expression: ${(e as Error).message}`);
  }

  const next = interval.next().toDate();
  const delay = next.getTime() - currentDate;

  // Schedule next execution for this job
  const thisJobId = ctx.key; // This got generated by the CronJobInitiator
  const handle = ctx.objectSendClient(cronJob, thisJobId, { delay }).execute();

  // Store the job information
  const jobState = {
    request,
    next_execution_time: next.toString(),
    next_execution_id: await handle.invocationId,
  };
  ctx.set<JobInfo>(JOB_STATE, jobState);
  return jobState;
};


  @Service
  public static class JobInitiator {
    @Handler
    public String create(Context ctx, JobRequest request) {
      // Create a new job ID and initiate the cron job object for that ID
      // We can then address this job object by its ID
      var jobId = ctx.random().nextUUID().toString();
      var cronJob = CronJobClient.fromContext(ctx, jobId).initiate(request).await();
      return String.format(
          "Job created with ID %s and next execution time %s", jobId, cronJob.nextExecutionTime());
    }
  }

  @Name("CronJob")
  @VirtualObject
  public static class Job {

    private final StateKey<JobInfo> JOB_STATE = StateKey.of("job-state", JobInfo.class);
    private final CronParser PARSER =
        new CronParser(CronDefinitionBuilder.instanceDefinitionFor(UNIX));

    @Handler
    public JobInfo initiate(ObjectContext ctx, JobRequest request) {
      if (ctx.get(JOB_STATE).isPresent()) {
        throw new TerminalException("Job already exists for this ID");
      }
      return scheduleNextExecution(ctx, request);
    }

    @Handler
    public void execute(ObjectContext ctx) {
      JobRequest request =
          ctx.get(JOB_STATE).orElseThrow(() -> new TerminalException("Job not found")).request;

      executeTask(ctx, request);
      scheduleNextExecution(ctx, request);
    }

    @Handler
    public void cancel(ObjectContext ctx) {
      ctx.get(JOB_STATE)
          .ifPresent(jobState -> ctx.invocationHandle(jobState.nextExecutionId).cancel());

      // Clear the job state
      ctx.clearAll();
    }

    @Shared
    public Optional<JobInfo> getInfo(SharedObjectContext ctx) {
      return ctx.get(JOB_STATE);
    }

    private void executeTask(ObjectContext ctx, JobRequest job) {
      Target target =
          (job.key.isPresent())
              ? Target.virtualObject(job.service, job.method, job.key.get())
              : Target.service(job.service, job.method);
      var request =
          (job.payload.isPresent())
              ? Request.of(
                  target, TypeTag.of(String.class), TypeTag.of(Void.class), job.payload.get())
              : Request.of(target, new byte[0]);
      ctx.send(request);
    }

    private JobInfo scheduleNextExecution(ObjectContext ctx, JobRequest request) {
      // Parse cron expression
      ExecutionTime executionTime;
      try {
        executionTime = ExecutionTime.forCron(PARSER.parse(request.cronExpression));
      } catch (IllegalArgumentException e) {
        throw new TerminalException("Invalid cron expression: " + e.getMessage());
      }

      // Calculate next execution time
      var now = ctx.run(ZonedDateTime.class, ZonedDateTime::now);
      var delay =
          executionTime
              .timeToNextExecution(now)
              .orElseThrow(() -> new TerminalException("Cannot determine next execution time"));
      var next =
          executionTime
              .nextExecution(now)
              .orElseThrow(() -> new TerminalException("Cannot determine next execution time"));

      // Schedule next execution for this job
      String thisJobId = ctx.key(); // This got generated by the CronJobInitiator
      var handle = CronJobClient.fromContext(ctx, thisJobId).send().execute(delay);

      // Save job state
      var jobState = new JobInfo(request, next.toString(), handle.invocationId());
      ctx.set(JOB_STATE, jobState);
      return jobState;
    }
  }
}


type CronJobInitiator struct{}

func (CronJobInitiator) Create(ctx restate.Context, req JobRequest) (string, error) {
  // Create a new job ID and initiate the cron job object for that ID
  // We can then address this job object by its ID
  jobID := restate.Rand(ctx).UUID().String()

  fmt.Printf("Creating new cron job with ID %s for service %s and method %s", jobID, req.Service, req.Method)
  job, err := restate.Object[*JobInfo](ctx, "CronJob", jobID, "Initiate").Request(req)
  if err != nil {
    return "", err
  }

  return fmt.Sprintf("Job created with ID %s and next execution time %s",
    jobID, job.NextExecutionTime.Format(time.RFC3339)), nil
}

type CronJob struct{}

func (CronJob) Initiate(ctx restate.ObjectContext, req JobRequest) (*JobInfo, error) {
  // Check if jobState already exists
  jobState, err := restate.Get[*JobInfo](ctx, JOB_STATE)
  if err != nil {
    return nil, err
  }
  if jobState != nil {
    return nil, restate.TerminalErrorf("jobState already exists for this ID", 500)
  }

  return scheduleNextExecution(ctx, req)
}

func (CronJob) Execute(ctx restate.ObjectContext) error {
  // Get the job information
  jobState, err := restate.Get[*JobInfo](ctx, JOB_STATE)
  if err != nil {
    return err
  }
  if jobState == nil {
    return restate.TerminalErrorf("job not found", 500)
  }

  // Add key if it's a virtual object call
  req := jobState.Request
  fmt.Printf("Executing job with ID: %s for service %s for method %s", restate.Key(ctx), req.Service, req.Method)
  if req.Key != "" {
    restate.ObjectSend(ctx, req.Service, req.Key, req.Method).Send(req.Payload)
  } else {
    restate.ServiceSend(ctx, req.Service, req.Method).Send(req.Payload)
  }

  // Schedule the next execution
  _, err = scheduleNextExecution(ctx, req)
  return err
}

func (CronJob) Cancel(ctx restate.ObjectContext) error {
  // Get the job to cancel the next execution
  job, err := restate.Get[*JobInfo](ctx, JOB_STATE)
  if err != nil {
    return err
  }
  if job == nil {
    return restate.TerminalErrorf("job not found for cancellation", 404)
  }
  restate.CancelInvocation(ctx, job.NextExecutionID)

  restate.ClearAll(ctx)
  return nil
}

func (CronJob) GetInfo(ctx restate.ObjectSharedContext) (*JobInfo, error) {
  return restate.Get[*JobInfo](ctx, JOB_STATE)
}

// scheduleNextExecution calculates and schedules the next execution of the cron job
func scheduleNextExecution(ctx restate.ObjectContext, req JobRequest) (*JobInfo, error) {
  // Parse cron expression
  parser := cron.NewParser(cron.Minute | cron.Hour | cron.Dom | cron.Month | cron.Dow)
  schedule, err := parser.Parse(req.CronExpression)
  if err != nil {
    return nil, restate.TerminalErrorf("invalid cron expression: %v", err, 500)
  }

  // Get current time deterministically from Restate
  currentTime, _ := restate.Run(ctx, func(ctx restate.RunContext) (time.Time, error) {
    return time.Now(), nil
  })

  // Calculate next execution time
  nextTime := schedule.Next(currentTime)
  delay := nextTime.Sub(currentTime)

  // Schedule next execution for this job
  thisJobID := restate.Key(ctx) // This got generated by the CronJobInitiator
  handle := restate.ObjectSend(ctx, "CronJob", thisJobID, "Execute").Send(nil, restate.WithDelay(delay))

  // Store the job information
  jobState := &JobInfo{
    Request:           req,
    NextExecutionTime: nextTime,
    NextExecutionID:   handle.GetInvocationId(),
  }
  restate.Set(ctx, JOB_STATE, jobState)
  return jobState, nil
}

Example not available in your language?

This pattern is implementable with any of our SDKs. We are still working on translating all patterns to all SDK languages. If you need help with a specific language, please reach out to us via Discord or Slack.

Adapt to your use case

Note that this implementation is fully resilient, but you might need to make some adjustments to make this fit your use case:

Take into account time zones.
Adjust how you want to handle tasks that fail until the next task gets scheduled. With the current implementation, you would have concurrent executions of the same cron job (one retrying and the other starting up). If you want to cancel the failing task when a new one needs to start, you can do the following: at the beginning of the execute call, retrieve the next_execution_id from the job state and check if it is completed by attaching to it with a timeout set to 0. If it is not completed, cancel it and start the new iteration.

Running the example

Download the example

ts
java
go

restate example typescript-patterns-use-cases && cd typescript-patterns-use-cases

restate example java-patterns-use-cases && cd java-patterns-use-cases

restate example go-patterns-use-cases && cd go-patterns-use-cases

Start the Restate Server

restate-server

Start the Service

ts
java
go

npx tsx watch ./src/cron/task_service.ts

./gradlew -PmainClass=my.example.cron.TaskService run

go run ./src/cron

Register the services

restate deployments register localhost:9080

Send a request

For example, run executeTask every minute:

ts
java
go

curl localhost:8080/CronJobInitiator/create --json '{
    "cronExpression": "* * * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello new minute!"
}'

curl localhost:8080/CronJobInitiator/create --json '{
    "cronExpression": "* * * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello new minute!"
}'

curl localhost:8080/CronJobInitiator/Create --json '{
    "cronExpression": "* * * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello new minute!"
}'

For example, or run executeTask at midnight:

ts
java
go

curl localhost:8080/CronJobInitiator/create --json '{
    "cronExpression": "0 0 * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello midnight!"
}'

curl localhost:8080/CronJobInitiator/create --json '{
    "cronExpression": "0 0 * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello midnight!"
}'

curl localhost:8080/CronJobInitiator/Create --json '{
    "cronExpression": "0 0 * * *",
    "service": "TaskService",
    "method": "executeTask",
    "payload": "Hello midnight!"
}'

You can also use the cron service to execute handlers on Virtual Objects, by specifying the Virtual Object key in the request.

You will get back a response with the job ID.

Using the job ID, you can then get information about the job:

ts
java
go

curl localhost:8080/CronJob/myJobId/getInfo

curl localhost:8080/CronJob/myJobId/getInfo

curl localhost:8080/CronJob/myJobId/GetInfo

Or cancel the job later:

ts
java
go

curl localhost:8080/CronJob/myJobId/cancel

curl localhost:8080/CronJob/myJobId/cancel

curl localhost:8080/CronJob/myJobId/Cancel

Check the scheduled tasks and state

In the UI, you can see how the tasks are scheduled, and how the state of the cron jobs is stored in Restate.

You can kill and restart any of the services or the Restate Server, and the scheduled tasks will still be there.

Example​

Adapt to your use case​

Running the example​
