Restate servers expose operational metrics in Prometheus exposition format via the NodeCtl(port 5122) endpoint, i.e. localhost:5122/metrics. For instance, configure Prometheus to scrape this endpoint every 30 seconds by adding this section to Prometheus configuration (assuming Restate server’s IP address is 10.10.10.1 and accessible by Prometheus:
scrape_configs:
- job_name: restate_server_1
  metrics_path: "/metrics"
  static_configs:
  - targets:
    - 10.10.10.1:5122
Note that some metrics are dependent on the value of rocksdb-statistics-level in the configuration file. In most cases, the default value will be sufficient for production deployment monitoring.

​
Grafana Dashboards

Restate provides two pre-built Grafana dashboards for monitoring your cluster. You can import them directly from Grafana.com:
DashboardGrafana IDDescription
Restate: Overview24747High-level cluster health, resources, and throughput
Restate: Internals24748Deep-dive into Bifrost, Invoker, RocksDB, and more
To import a dashboard:
  1. Open Grafana and go to Dashboards > Import
  2. Enter the dashboard ID (24747 or 24748) and click Load
  3. Select your Prometheus datasource
  4. Click Import
Import both dashboards to enable navigation links between them.

​

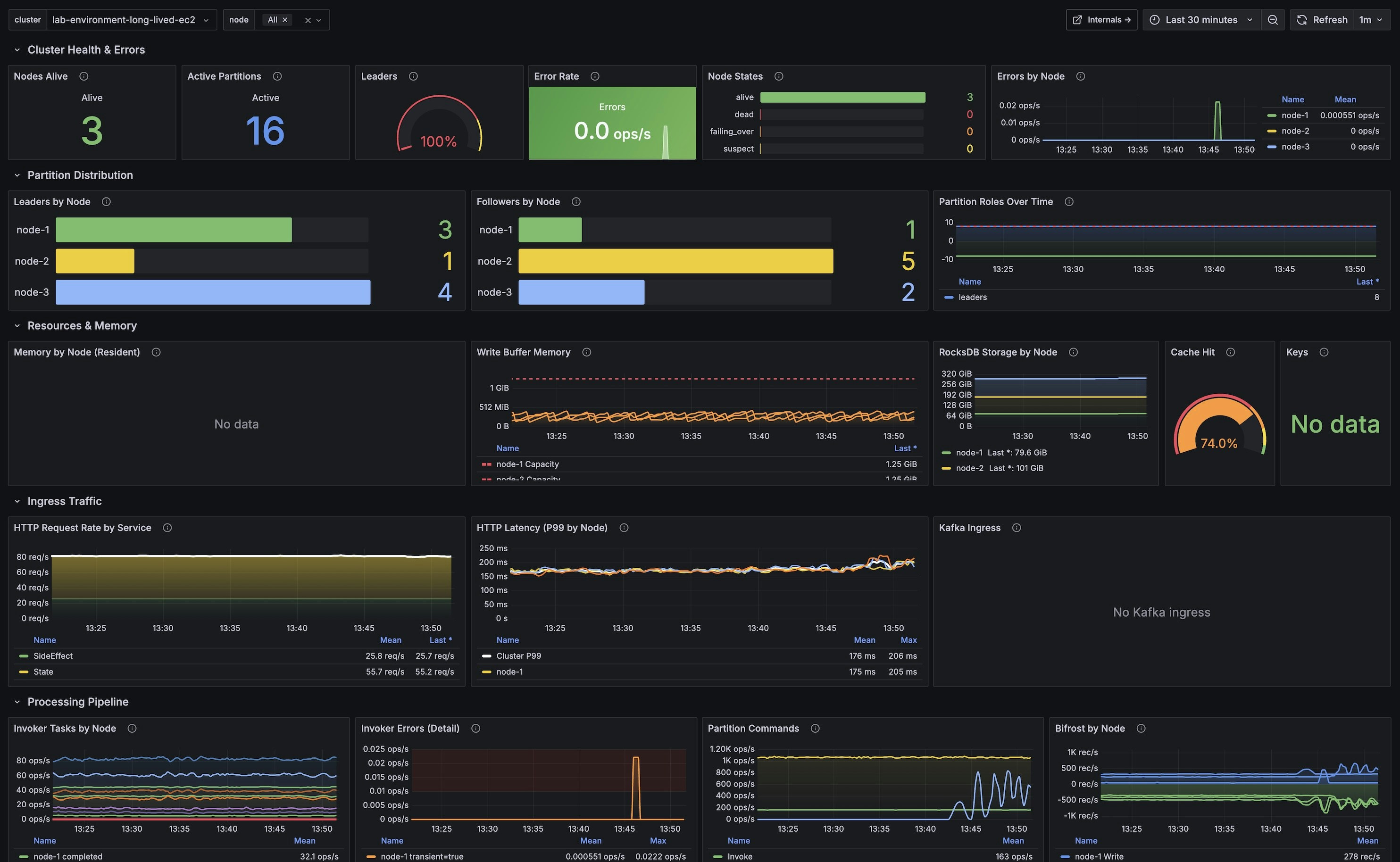

Overview Dashboard

​

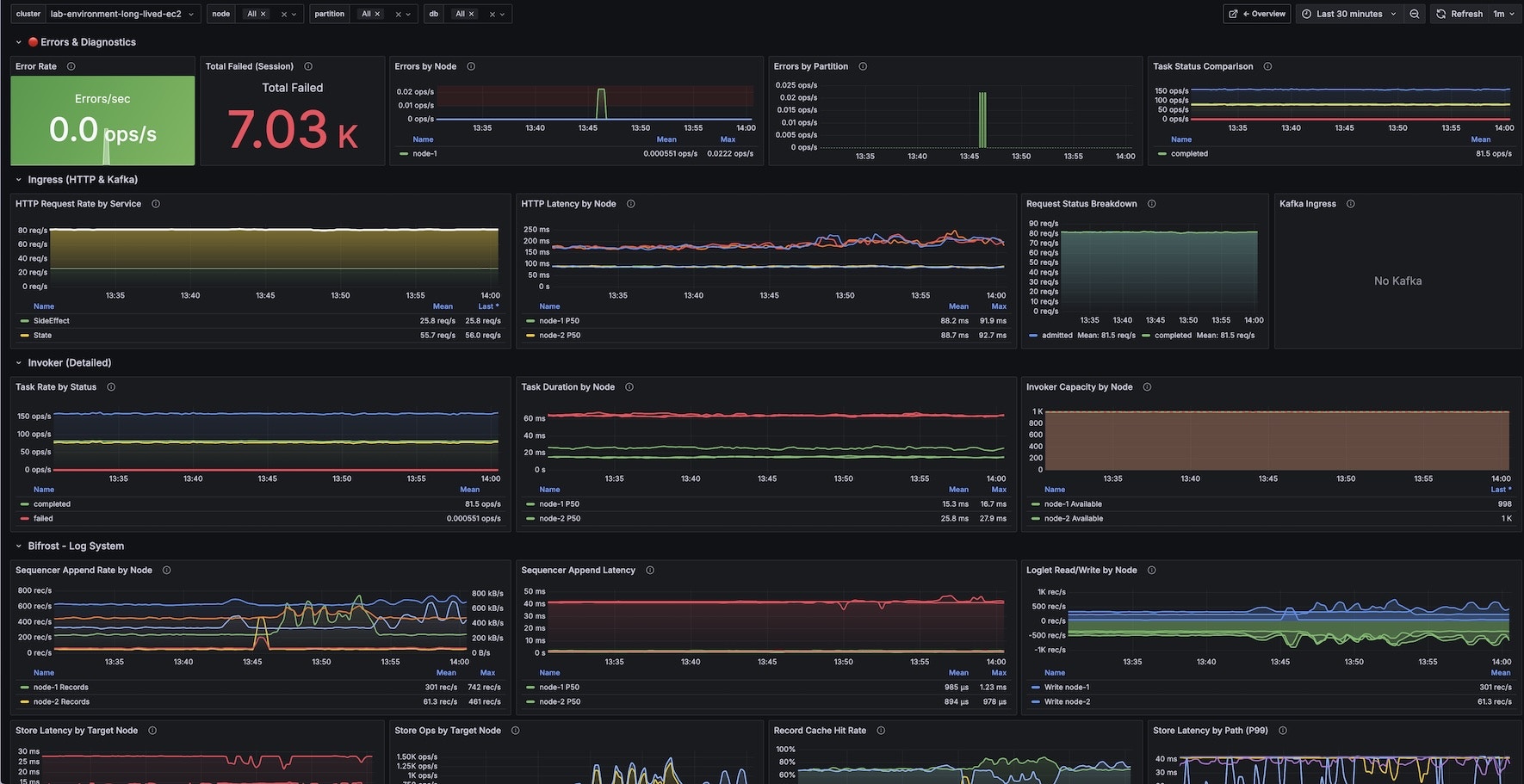

Internals Dashboard

​
Example Metrics

This is a non-exhaustive list of metrics that can be used to measure system performance:
  • restate_ingress_requests_total (counter) - Number of ingress requests in different states (admitted, completed, throttled, etc.)
  • restate_ingress_request_duration_seconds (summary) - Total latency of Ingress request processing in seconds
  • restate_rocksdb_estimate_live_data_size_bytes (Gauge) - Size of the live data in RocksDb databases in bytes
  • restate_invoker_invocation_task_total (counter) - The number of invocation tasks to user handlers

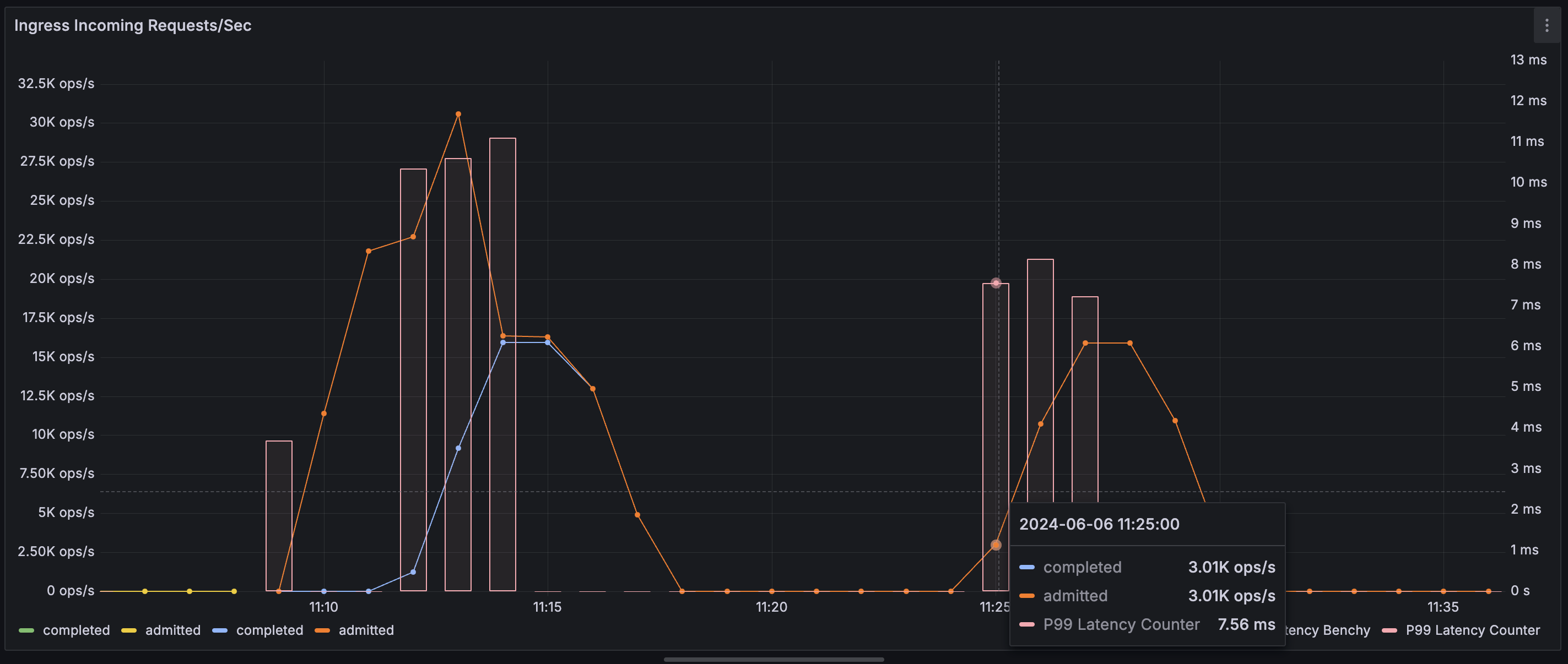

For example, we can use the following Prometheus queries to visualize throughput (ops/s) of HTTP ingress requests with an overlay of P99 latency:
rate(restate_ingress_requests_total{cluster_name="localcluster"}[$__rate_interval])

restate_ingress_request_duration_seconds{cluster_name="localcluster", quantile="0.99"}
