Restate supports the following tracing features:
  • Runtime execution tracing per invocation
  • Exporting traces to OTLP-compatible systems (e.g. Jaeger)
  • Correlating parent traces of incoming HTTP requests, using the W3C TraceContext specification.

​
Setting up OTLP exporter

Set up the OTLP exporter by pointing the configuration entry tracing-endpoint to your trace collector. By default, a tracing-endpoint using the http:// or https:// scheme will emit trace data in the OTLP/gRPC format. Restate also supports the otlp+http:// and otlp+https:// schemes, to emit trace data in the OTLP/HTTP format. Note that when using OTLP/HTTP, the tracing-endpoint URI usually needs to include an e.g. /v1/traces path.

​
Exporting traces to Jaeger

Jaeger accepts OTLP trace data on port 4317 (gRPC) and 4318 (HTTP). Start Jaeger locally with Docker, for example:
docker run -d --name jaeger \
    -p 4317:4317 -p 4318:4318 -p 16686:16686 \
    jaegertracing/jaeger:2.4.0
Configure the tracing endpoint in Restate as a valid URL:
restate-server --tracing-endpoint http://localhost:4317 # for gRPC
restate-server --tracing-endpoint otlp+http://localhost:4318/v1/traces # for HTTP (note /v1/traces)
If you run Restate in Docker, then instead add the environment variable -e RESTATE_TRACING_ENDPOINT=http://host.docker.internal:4317. If you now spin up your services and send requests to them, you will see the traces appear in the Jaeger UI at http://localhost:16686

​
Understanding traces

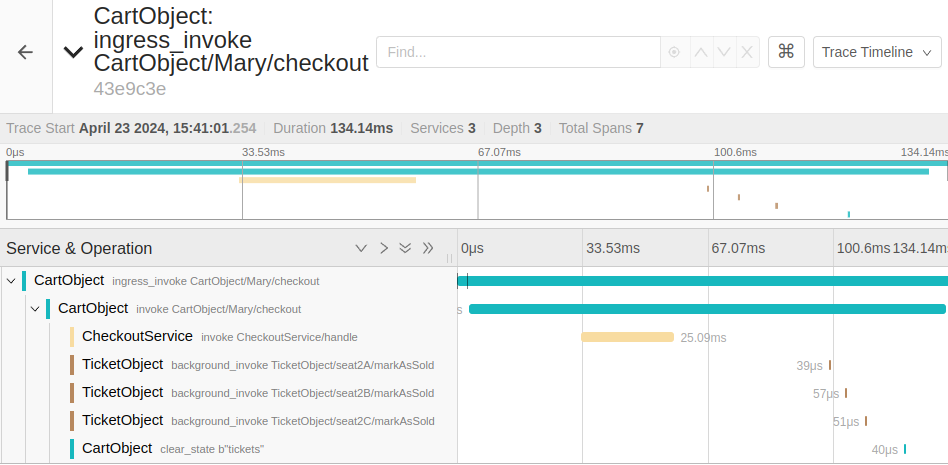

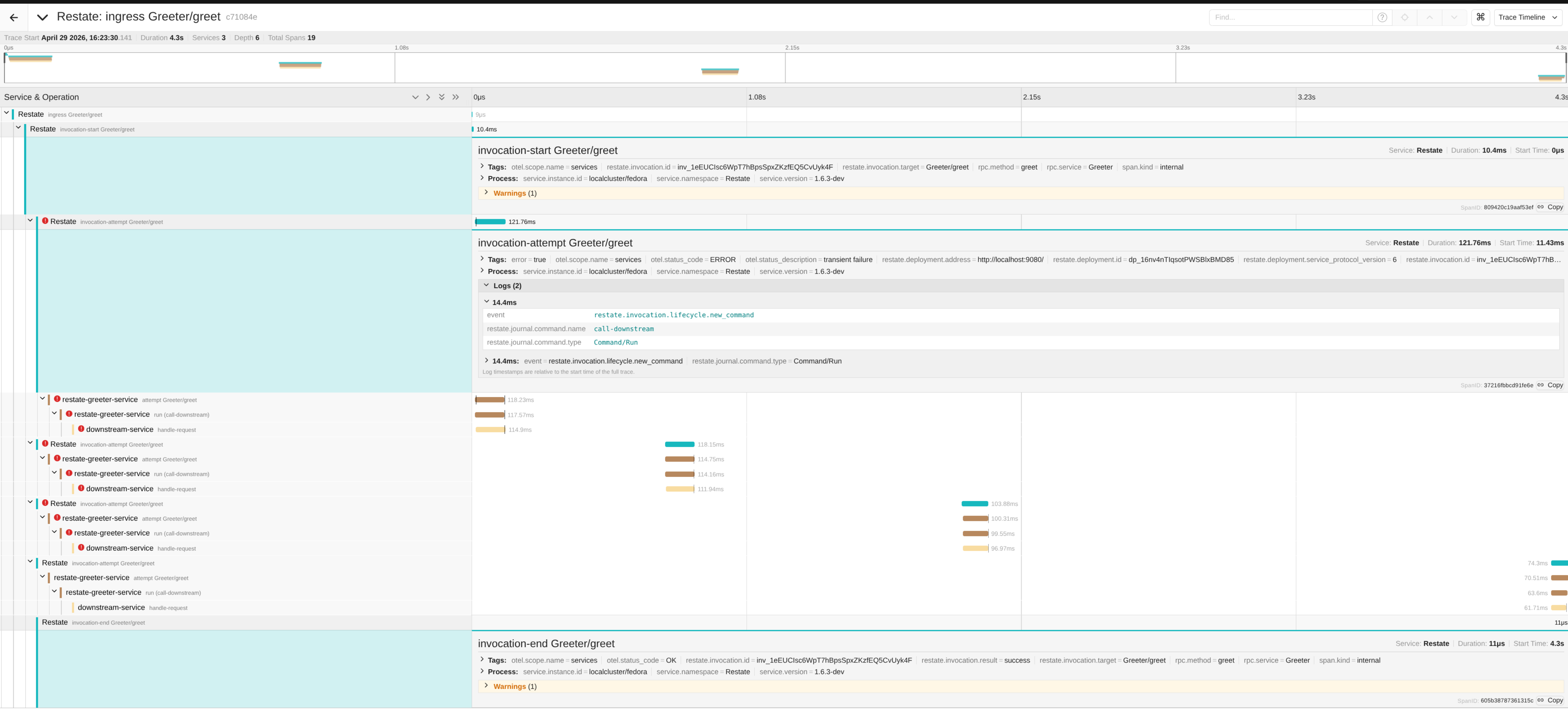

The traces contain detailed information about the context calls that were done during the invocation (e.g. sleep, one-way calls, interaction with state): The initial ingress_invoke spans show when the HTTP request was received by Restate. The invoke span beneath it shows when Restate invoked the service deployment to process the request. The tags of the spans contain the metadata of the context calls (e.g. call arguments, invocation id).

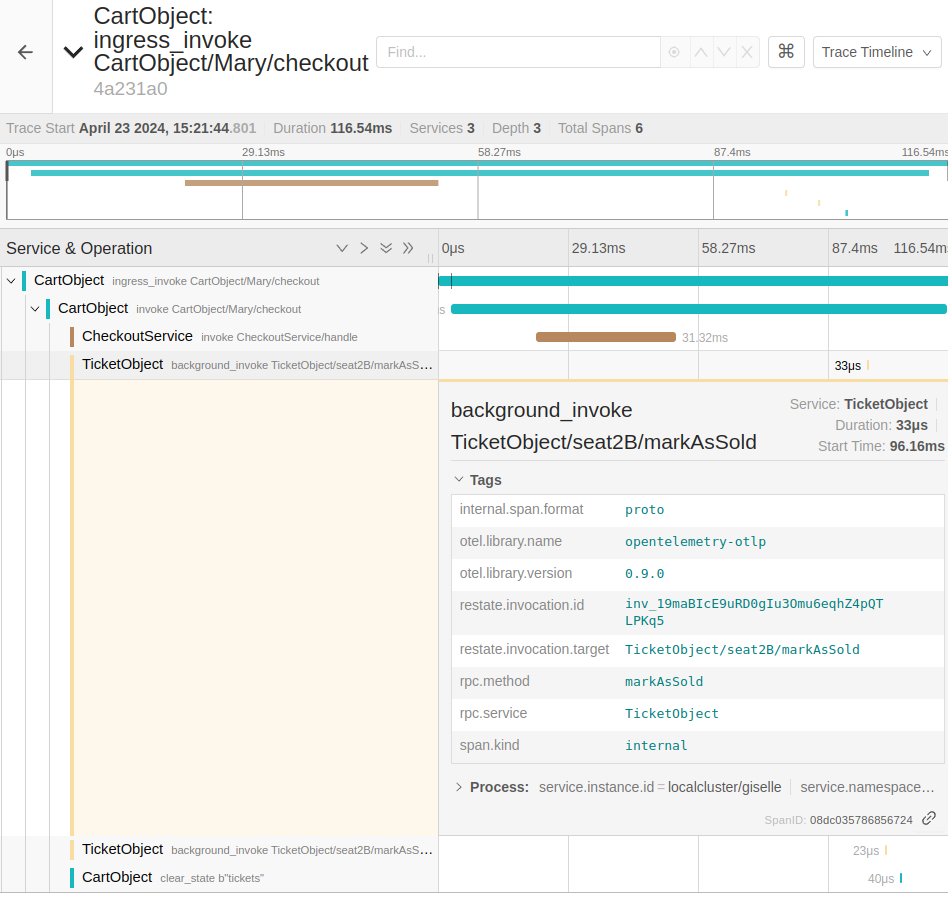

When a service invokes another service, the child invocation is linked automatically to the parent invocation, as you can see in the image. Note that the spans of one-way calls are shown as separate traces. The parent invocation only shows that the one-way call was scheduled, not its entire tracing span. To see this information, search for the trace of the one-way call by filtering on the invocation id tag restate.invocation.id="inv_19maBIcE9uRD0gIu30mu6eqhZ4pQT".

​
Searching traces

Traces export attributes and tags that correlate the trace with the service and/or invocation. For example, in the Jaeger UI, you can filter on the invocation id (restate.invocation.id) or any other tag:
